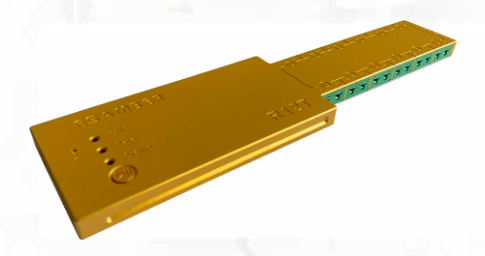

Temperature profiles R6T-D

Multiple field application

Esamber temperature profiler is equipped with advance PT32K data collector, profiler can apply for reflow/wave soldering oven solar cell sintering, hardening of glue, furnance, food processing, coating automobile heat treatment, metal heat treatment, pottery firing and special steam thermal conduction welding and other high temperature industries, for the temperature data collecting

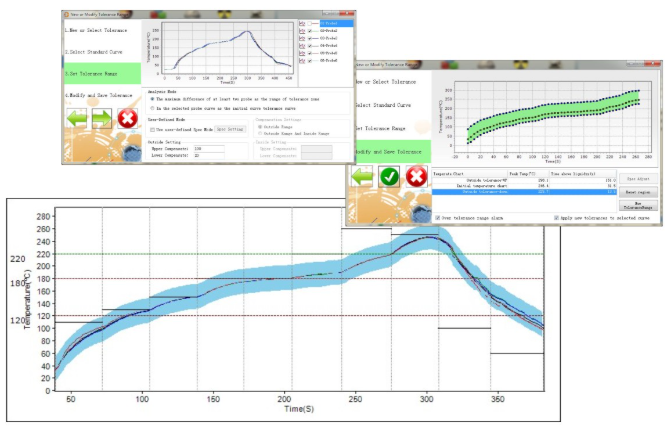

Curve tolerance function

  • Included the channel selected as the curve tolerance function
  • Included multi channel as the curve tolerance function
  • Included outer tolerance and inner tolerance and self defined range tolerance function
  • Included initiate self range setting function
  • Included visible auto adjusting tolerance deviation function
  • Included printing the tolerance range function
Solicita cotización
More
  • 6,8,10,12,16,20,32 channels etc, can be chosen
  • 16,000 points datum can be recorded by each channel
  • According to customer’s requirement, multi record storage can be chosen (2-32 times options)
Fast
  • USB 2.0 Port provides faster data loading speed
  • Fast rechargable battery (10 minutes charge for 50 times test), the battery is chargen while loading the data
Good
  • Intelligent data protection, no erro & missing, data lost-proof in case of power-off or misoperation
  • Resolution: 0.10C, Precision: 土 0.50C, sampling time 0.1-400 Sec, cab be adjustable
  • Automatically detect the thermocouple defect
Save
  • Energy-save design, standby can be long as 280 days
  • USB Port charge, no need for special charge
  • Powerful function and easy to operate, and save the training time
  • Manage energy consumption of reflow, independent specs management for each

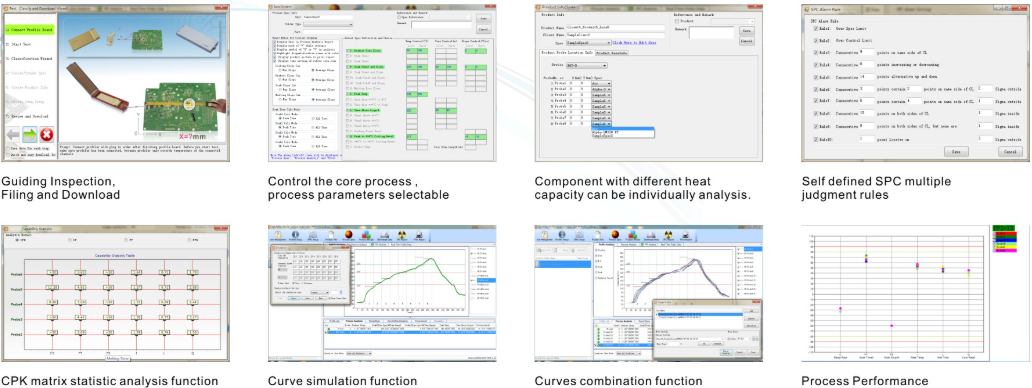

Software Description/ Main Function
  • Reflow process analysis management
  • Wave process analysis management
  • Wave soldering solder dipping inspection analysis
  • Profile simulation function
  • Profile merge Function
  • Profile classification management
  • Intelligent search function
  • Convenient and fast download guide
  • Intelligent temperature profile analysis
  • Batch profiles analysis function
  • Batch profiles transfer function
  • Export to excel od PDF
  • Profile tolerance analysis function
  • Intelligent SPC Static function
  • CPK Matrix statics function
  • Temperature cursor and user-defined analysis
  • Auto-Aligment and zoining function
  • User-defined multi SPC Rule
  • Individual spec analysis (each channel)
  • Process performance index function
  • PP, PPK, CP, PPI index analysis
