HotAir Reflow Oven Performance Evaluation Explorer

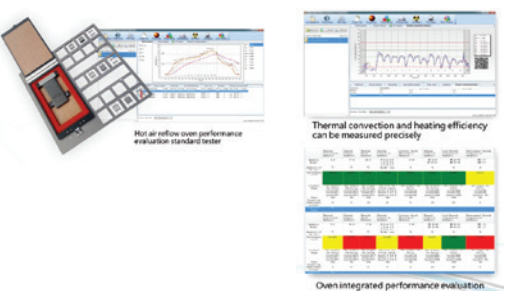

Esamber relfow explorer is dedicate tester for the hot air reflow oven performance evaluation, this standard tester is integrated with different thermal capacity modules and thermal convection sensor to simulating the actual board production and equipped with Esamber R9E3 data recorder, standard loading board and EREs analysis soft ware to relies comprehensive monitoring on reflow thermal status and process stability.
The function of Reflow Explorer
- Evaluation of new oven
- Optimal ailocation the production of different model of board
- Process parameters setting optimization
- Optimal the maintenance of oven
- Production output optimization
- Energy saving and exhaust reduction
Solicita cotización

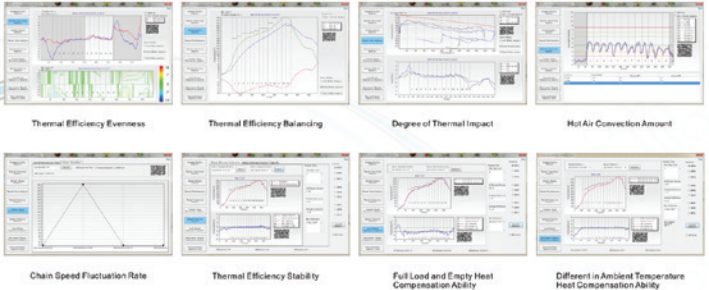

Testing items
- Thermal eficiency evenness analysis
- Thermal eficiency balancing analysis
- Thermal eficiency impact analysis
- Hot air convenction strength analysis
- Chain speed fluctuation rate analysis
- Full load and empty heat compensation analysis
- Ambient temperature differente heat compensation analysis
- Thermal eficiency calibration and aging analysis
- Peak temperature value CPK analysis
- Hot air convenction CPK Analysis
- Chain speed CPK Analysis

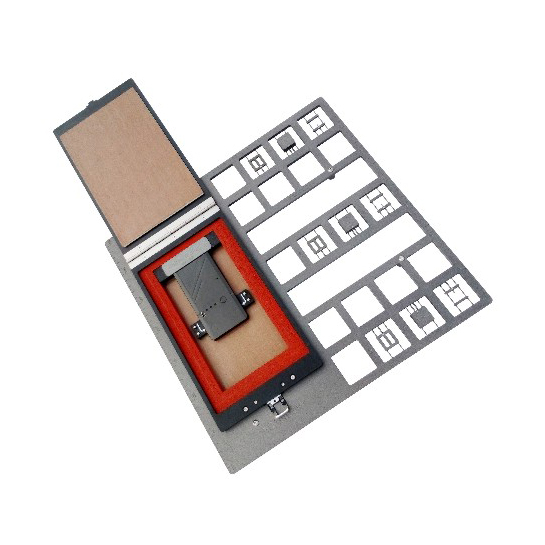

Reflow Explorer
The reflow exporar is specially use for checking the condition of reflow oven, according to the measured data to judge is the process parameters suitable for the existed product production, this effectively reduced the product reject due to deficient ability of oven or the improper allocation of the oven, quickly find out the root cause of the rejection.
| Technical parameter | |
|---|---|
| Type | Esamber R9E3 |
| Dimension (mm) | 152(L) x 110(W) x 17(H) |
| Channel Numbers | 9 channels temperature recording, 3 channels expansible recording (such as hot air convection, chain speed, etc.) |
| Thermocoupke | Type K |
| Temperature Range | 0~8000c |
| sampling frequency | 0.1 - 400s Adjustable |
| precision | 土0.5⁰C |
| Resolution | 0.1⁰C |
| Data interface | General USB2.0 |
| Battery | Rechargable battery |
| Assorted software | EREs Analysis Software |
| Software system | Microsoft Windows 2000, XP, Win7,Wind8(32/64 bit) |
| Software Language | English, Simplified chinese, traditional chinese |
