Profilers

Software Description/main function

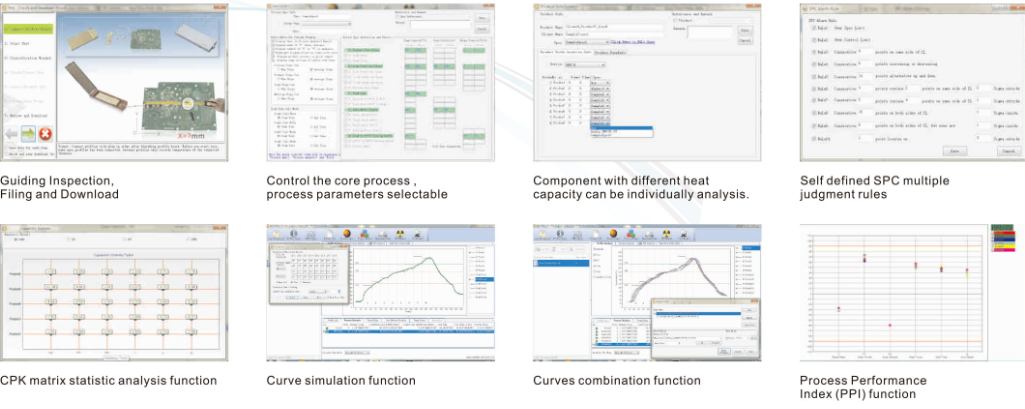

• Refloe Process Analisis Management
• Wave process analysis management
• Profille simulation function
• Profile Merge Function
• Profile classification management
• Intelligent Search Function
• Convenient and fast download guide
• Intelligent temperature profile analysis
• Batch profiles transfer function
• Export to excel or PDF

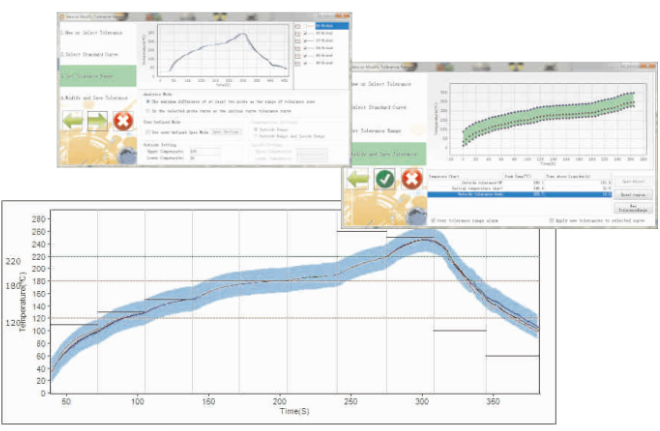

• Profile tolerance analysis function
• Intelligent SPC statics function
• CPK matrix statics function
• Temperature cursor and user-defined analysis
• Auto-alignment and zoning function
• User-defined multi SPC rules
• Individual specs analysis (Each channel)
• Process performance index function
• PP,PPK,CP,CPK,PPI Index analysis

More

• 6,8,10,12,16,20,24,32 channels etc. Can be chosen
• 16,000 points datum can be recorded by each channel
• According to customers requirement, multi record storage can be chosen (2-32 times options)

Fast

• USB2.0 port provides faster data loading speed
• Fast rechargable battery (10 minutes charge fot 50 times test) the battery is chargen while loading the data

Good

• Intelligent data protection, no error & missing, data lost-proof in case of power-off or misoperation
• Resolution: 0.10C Precision: 土0.5⁰C, sampling time 0.1-400 sec, can be adjustable
• Automatically detect the thermocuple defect

Save

• Energy-save design, standby can be as long as 280 days
• USB Port charge, no need for special charge
• Powerful function and easy to operate, and save the training time
• Manage energy consumption of reflow, independent spec management for each
